Optic Cut Tooling Package

$150.00

Tooling for Doctor Noblex Optic Cut & Trijicon style RMR/Holosun



Compatible Optic’s for Doctor Noblex

  • Ade Advanced Optics RD3-002
  • ADE Advanced Optics RD3-006A Huracan
  • ADE Advanced Optics RD3-006B Huracan
  • ADE Advanced Optics RD3-009 Crusader
  • ADE Advanced Optics RD3-012 Delta
  • ADE Advanced Optics RD3-013 Bertrillium
  • Athlon Midas TSR1
  • Burris Fastfire 2
  • Burris Fastfire 3
  • Burris Fastfire 4
  • Delta Optical MiniDot II
  • Leica Tempus
  • MAKdot 1×25
  • Noblex Sight 2 Plus
  • Noblex Sight G
  • Sightmark Mini Shot M-Spec
  • Sightmark Mini Shot Pro Spec
  • US Optics DRS 2.0
  • US Optics DRS 2.0 Enhanced
  • UTG OP3 Micro
  • Vector Optics Frenzy 1x17x24
  • Vector Optics Frenzy 1x20x28
  • Vortex Venom
  • Vortex Viper

Trijicon Pattern

  • Trijicon SRO Cut
  • Trijicon RMR Optic Cut
  • Holosun 508T X2
  • Holosun 508T
  • Holosun 507C X2
  • Holosun 507C
  • Holosun 407C X2
  • Holosun 407C

Description

Docter Noblex sight mounting standard



2A Part Picker is excited to announce it’s first introduction to Optic Cut’s for our slide fixture. Following will be 5 other footprint patterns.

The Docter/Noblex sight mounting standard, often referred to simply as the Docter sight mounting standard, is the most popular mounting surface in the open reflex red dot sight category. All other mounting standards on open reflex red dot sights are based on it. As the name suggests, Docter was the first to use this mounting standard. Many refer to it as Docter/Noblex mounting standard since Noblex bought Docter in 2017.

It consists of four sockets, one in each corner. The pins on the adapter that fit into these sockets act as recoil stoppers. There are two screw holes between the rear and the middle section of the mounting surface for mounting purposes. Once the sight is paired with an adapter, the screws are put into place from above, through the housing of the red dot sight.

Red dot sights that feature the Docter/Noblex mounting standard can be used on handguns and rifles. Many optic-ready pistols are designed to be used in combination with a red dot sight that has the Docter/Noblex mounting standard. Some pistol and adapter manufacturers list Vortex ViperVortex Venom, or Burris Fastfire 3 as an example of a dot that features this mounting standard.



Compatible with Models

  • G17
  • G19
  • G20
  • G21
  • G22
  • G26
  • G34
  • G34X
  • G43
  • G43X



What Comes With This Kit?

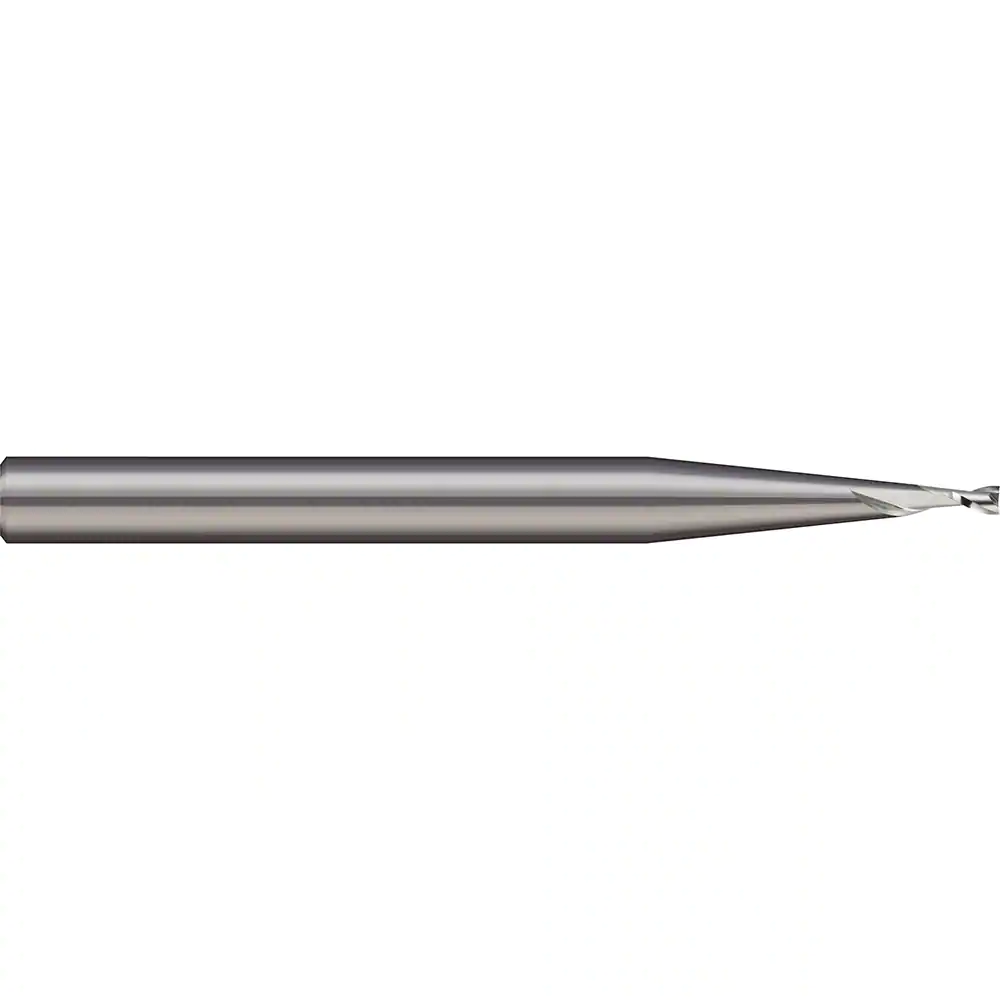

  • Setup 1 Tool – 1/16 Flat End Mill
  • 1mm End Mill
  • #4-40 Tap

Thread Pattern

  • 64 TPI – for #6-32 Screws



Benefits of Footprint Pattern

  • Locating Posts
  • Thread Posts



Compatible Optic’s for Doctor Noblex

  • Ade Advanced Optics RD3-002
  • ADE Advanced Optics RD3-006A Huracan
  • ADE Advanced Optics RD3-006B Huracan
  • ADE Advanced Optics RD3-009 Crusader
  • ADE Advanced Optics RD3-012 Delta
  • ADE Advanced Optics RD3-013 Bertrillium
  • Athlon Midas TSR1
  • Burris Fastfire 2
  • Burris Fastfire 3
  • Burris Fastfire 4
  • Delta Optical MiniDot II
  • Leica Tempus
  • MAKdot 1×25
  • Noblex Sight 2 Plus
  • Noblex Sight G
  • Sightmark Mini Shot M-Spec
  • Sightmark Mini Shot Pro Spec
  • US Optics DRS 2.0
  • US Optics DRS 2.0 Enhanced
  • UTG OP3 Micro
  • Vector Optics Frenzy 1x17x24
  • Vector Optics Frenzy 1x20x28
  • Vortex Venom
  • Vortex Viper

Trijicon Pattern

  • Trijicon SRO Cut
  • Trijicon RMR Optic Cut
  • Holosun 508T X2
  • Holosun 508T
  • Holosun 507C X2
  • Holosun 507C
  • Holosun 407C X2
  • Holosun 407C
